3" Diameter Leaf Type Air Chuck - HD Series

Capacities
Maximum Torque	20.0 ft·lbs (240.0 in·lbs) [2.8kg-m] [27N-m] per linear inch of leaf with a maximum of 150.0 ft·lbs (1,800.0 in·lbs) [20.7kg-m] [203N-m]
Maximum Load	25# [9kg] per linear inch of leaf with a maximum of 140# [64kg]
Core material compatibility	Cardboard (paper); decreased grip on plastic and metal
Expanded Diameter (G)	3.093" (3-3/32") [78.56mm]
Maximum Bore (H)	2.000" (2") [50.80mm]
Contracted Diameter (F)	2.969" (2-31/32") [75.41mm]
Dimensions
Maximum Expanding Area	20.000" (20") [508.00mm]
Minimum Expanding Area	2.000" (2") [50.80mm]
Moment of Inertia	Assume uniform density of aluminum
Drawing	Available - please contact us.
3D Model	Available - please contact us.
Features
Material	Aluminum, Black oxide steel, Stainless steel and rubber
Corrosion Resistance	Mildly corrosion resistant in dry environments
Installation
Operating Air Pressure	80 psi [5.5 bar] +/- 5 psi [0.3 bar]
Air Type	Filtered, Regulated, Non-Lubricated
Support
Phone and email Support	Free - Ask an engineer for help
Warranty	1 Year
Condition
Product Condition	New

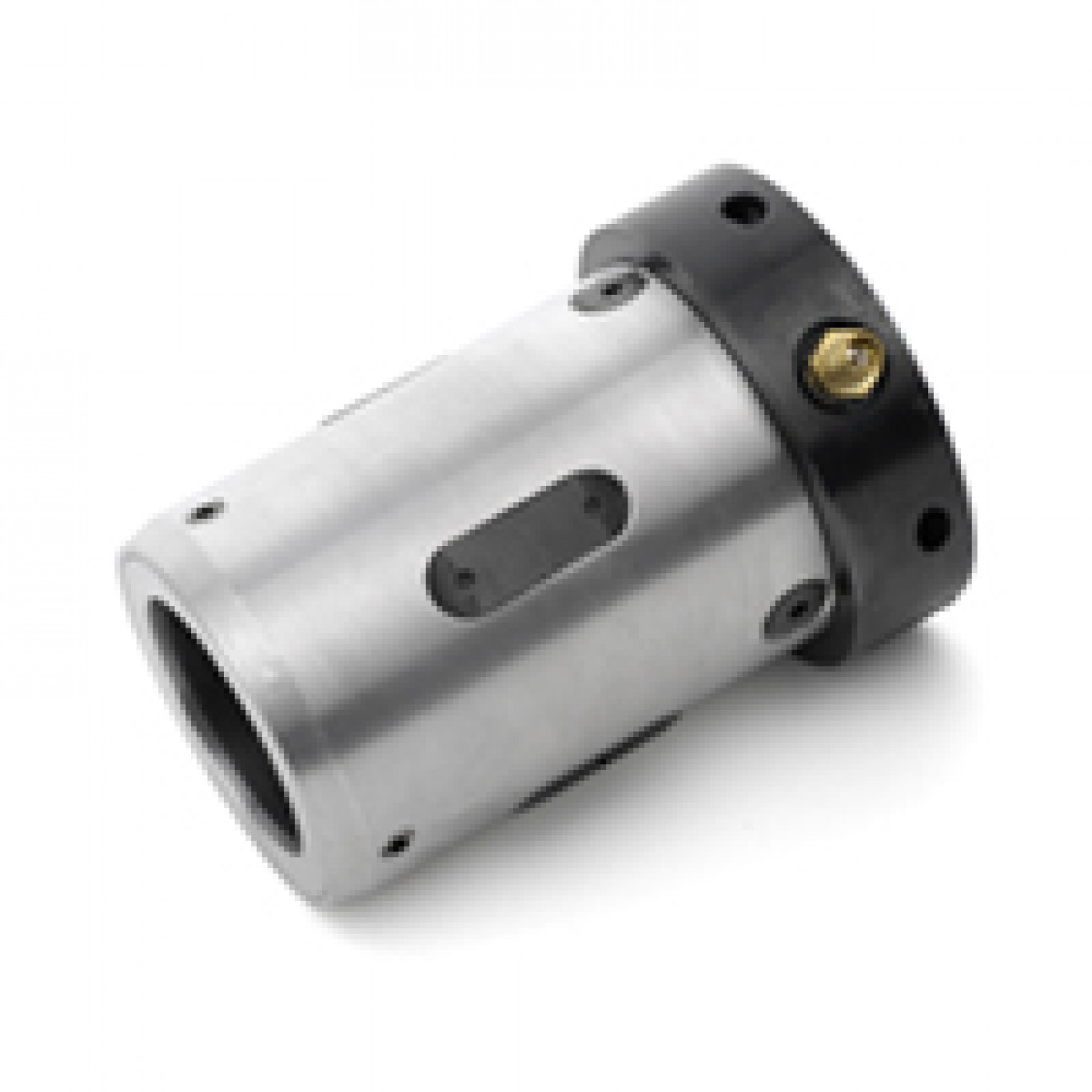

3" Diameter Lug Type Air Chuck - LGJ Series

Categories:

Qty

Product Series

LGJ

Roll - Fits Core inner diameter

3.000" (3") [76.20mm]

Bore ( Tol: +0.002" to +0.004" [+0.05mm to +0.10mm] )

Securing Method

Flange (Core Stop)

Rear Guide Flange Holes

Air Connection Location

Air Connection Type

Custom Expanding Length

Custom overall length (only fill in if custom was chosen above)

Your Reference

Can this item be returned and/or order cancelled

Additional Information:

$632.72 Each
