3" Diameter Mechanical Chuck - M6 series

Capacities
Core material compatibility	Cardboard (paper); not suitable for plastic and metal
Expanded Diameter (G)	G = 3.093" (6-3/32") [154.76mm]
Maximum Bore (H)	Hmax = 2.000" (5") [127.00mm]
Contracted Diameter (F)	F = 2.969" (5-31/32") [151.61mm]
Dimensions
Moment of Inertia	Assume uniform density of aluminum
Drawing	Available - please contact us.
3D Model	Available - please contact us.
Features
Material	Aluminum, Black oxide steel, Stainless steel and rubber
Corrosion Resistance	Mildly corrosion resistant in dry environments
Actuation Mechanism	Self Actuating in either direction
Support
Phone and email Support	Free - Ask an engineer for help
Warranty	1 Year
Condition
Product Condition	New

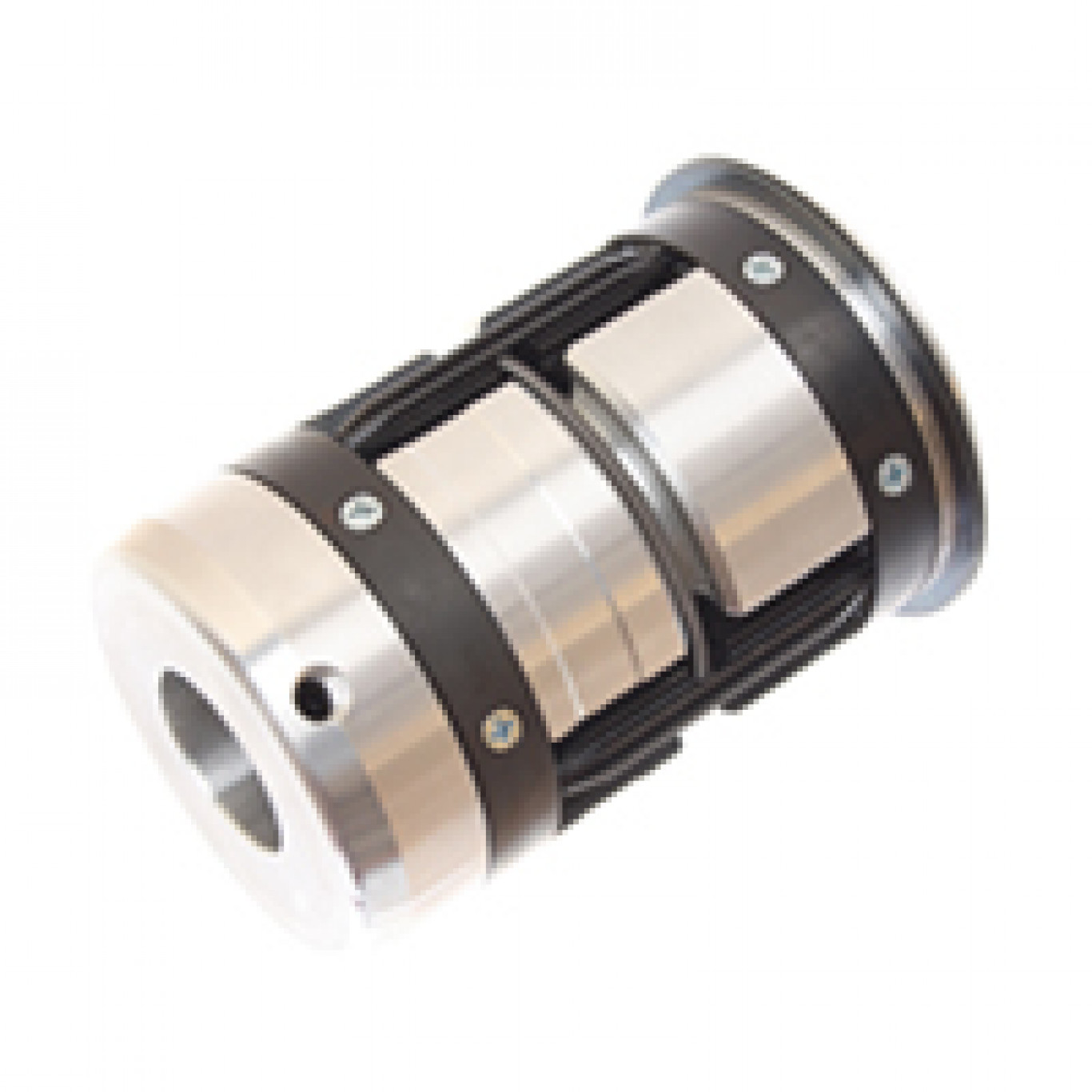

3" Diameter Mechanical Chuck - M3 series

Categories:

Qty

Gripping Length (B) --- Overall Length (A)

Product Series

Roll - Fits Core inner diameter

3.000" (3") [76.20mm]

Bore ( Tol: +0.002" to +0.004" [+0.05mm to +0.10mm] )

Securing Method

Flange (Core Stop)

Rear Guide Flange Holes

Custom Expanding Length

Custom overall length (only fill in if custom was chosen above)

Your Reference

Can this item be returned and/or order cancelled

Additional Information:

$274.06 Each
