Replaceable insert type safety chucks with 45° entry angle have less capacity than the 90° entry angle type but have the added feature that when the pocket does wear out only the insert needs to be replaced.

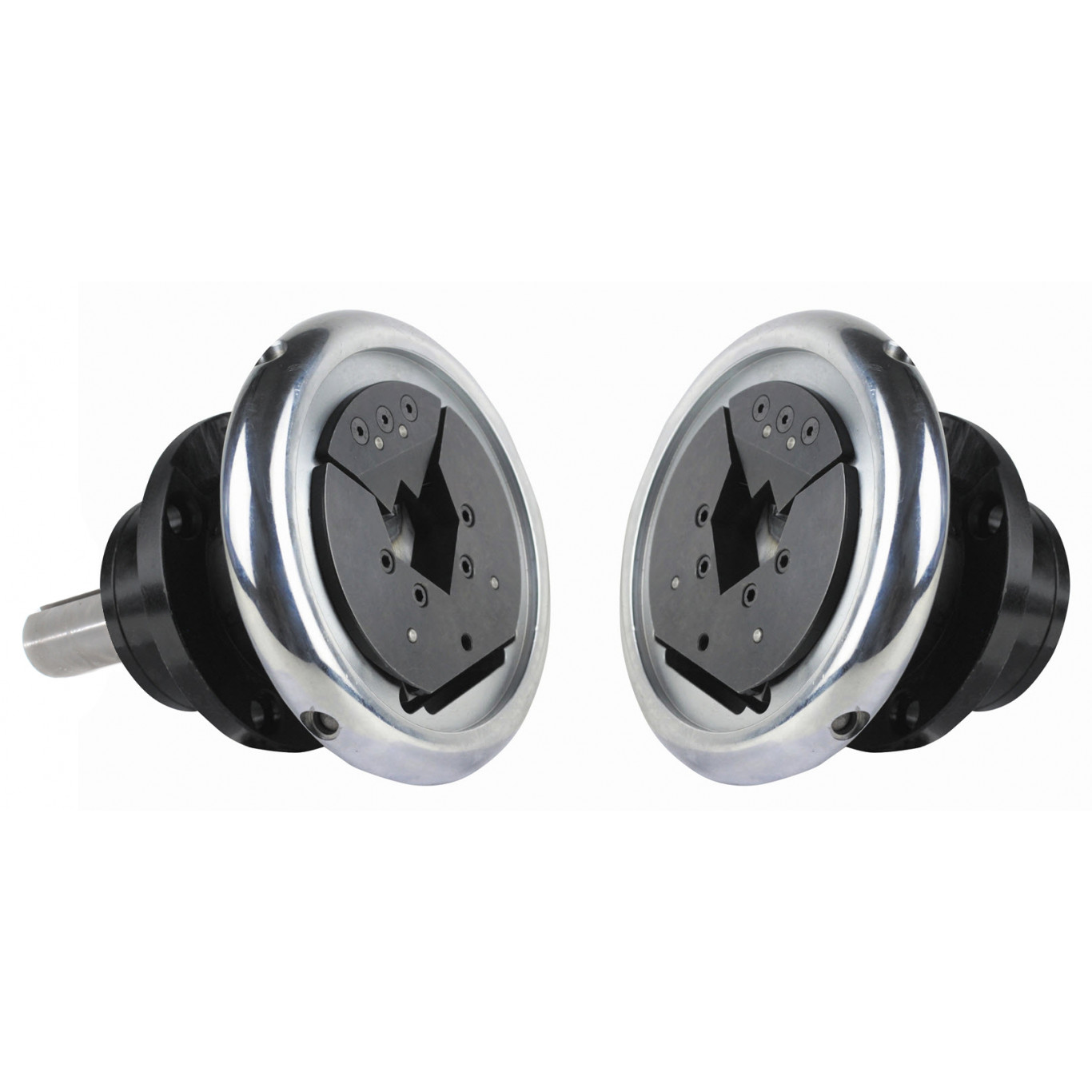

Set includes two safety chucks. One piece has a drive shaft for mounting a brake or clutch and the other piece has no shaft.
| Capacities | |
| Max Roll Weight Per Set | 1,411# [640kg] |
| Maximum Torque Shafted Side | 99.6 ft·lbs (1,194.9 in·lbs) [13.8kg-m] [135N-m] |
| Dimensions | |
| Drawing |  |
| 3D Model | |
| Features | |

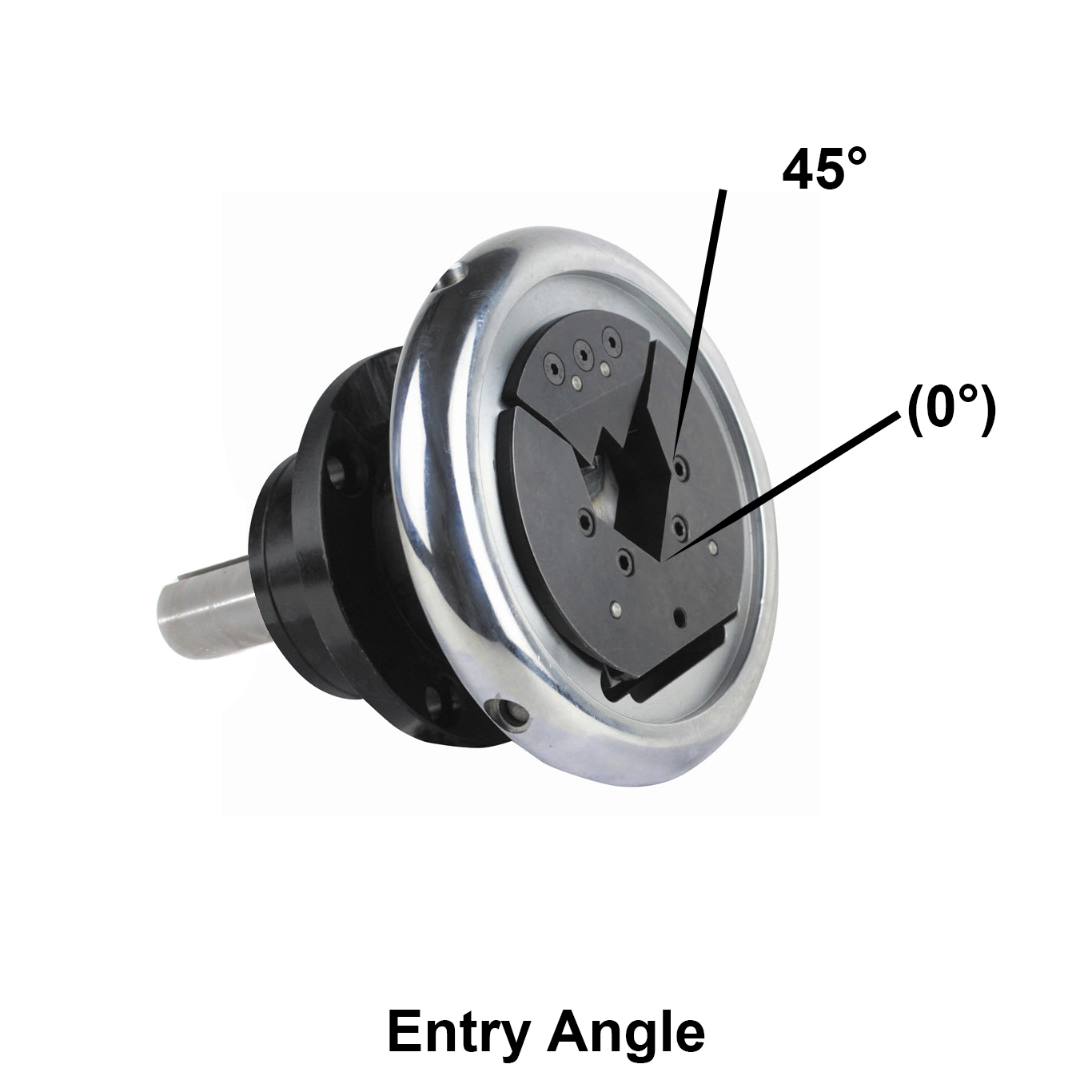

Entry Angle |
45° |
| Replaceable Insert | Yes |
| Sliding Adjustment | No |
| Installation | |
| Mounting | Flange |
Mounting Bolt Size |
0.437" (7/16") [12mm] Dia. |
Mounting Bolt Circle |
5.314" (5-5/16") [135mm] |
| Winding Shaft Length Requirement |  |
| Alignment |  |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | |
| Compare To | |
| JRC Web | 502105 |
| Niika | FLO/W28 VT2 |
| Boschert | FLO/W 22-30 VT2 |
| Condition | |
| Product Condition | |
Safety Chucks
- Brand: JRC Web Accessories Categories: - Set
- Part #: 502700
- Availability: Ships in 6 - 8 weeks from our factory in Fairfield, NJ USA
-
$1,063.46 Set
-
-
Quantity Discount
1
2-41.5%
5-92.5%
10-147.5%
15-2410%
25-4915%
50+17.5%
