Thru Bore Magnetic Particle Powder Brake, 18 ft-lbs (216 in-lbs), 6" OD, Ø25mm h7 (0.985/0.984") Bore, 8mm (0.315") Keyway
Provides a smooth adjustable tension to your web while unwinding (paying off the roll). Torque can be varied using a controller. For contant torque without feedback use WT-PDC-05 controller. For constant tension with feedback use VA-816 and Load Cell. May also be controlled with a PLC (programmable logic controller) Voltage is constant at 24 volts DC. Vary the current to vary the torque. See table for maximum current. Port for air cooling.
| Capacities | |
| Maximum Torque | 36.9 ft·lbs (442.5 in·lbs) [5.1kg-m] [50N-m] |
| Power | 30 Watts @ 167.0°F [75.0°C] |
| Attracting Time | 0.12 s @ 167.0°F [75.0°C] |
| Magnetic Powder Weight | 12.17 oz [345.0g] |
| Maximum Speed | 400 rpm |
| Dimensions | |
| Moment of Inertia | 0.0354 #-ft2 [0.0015 kg-m2] |

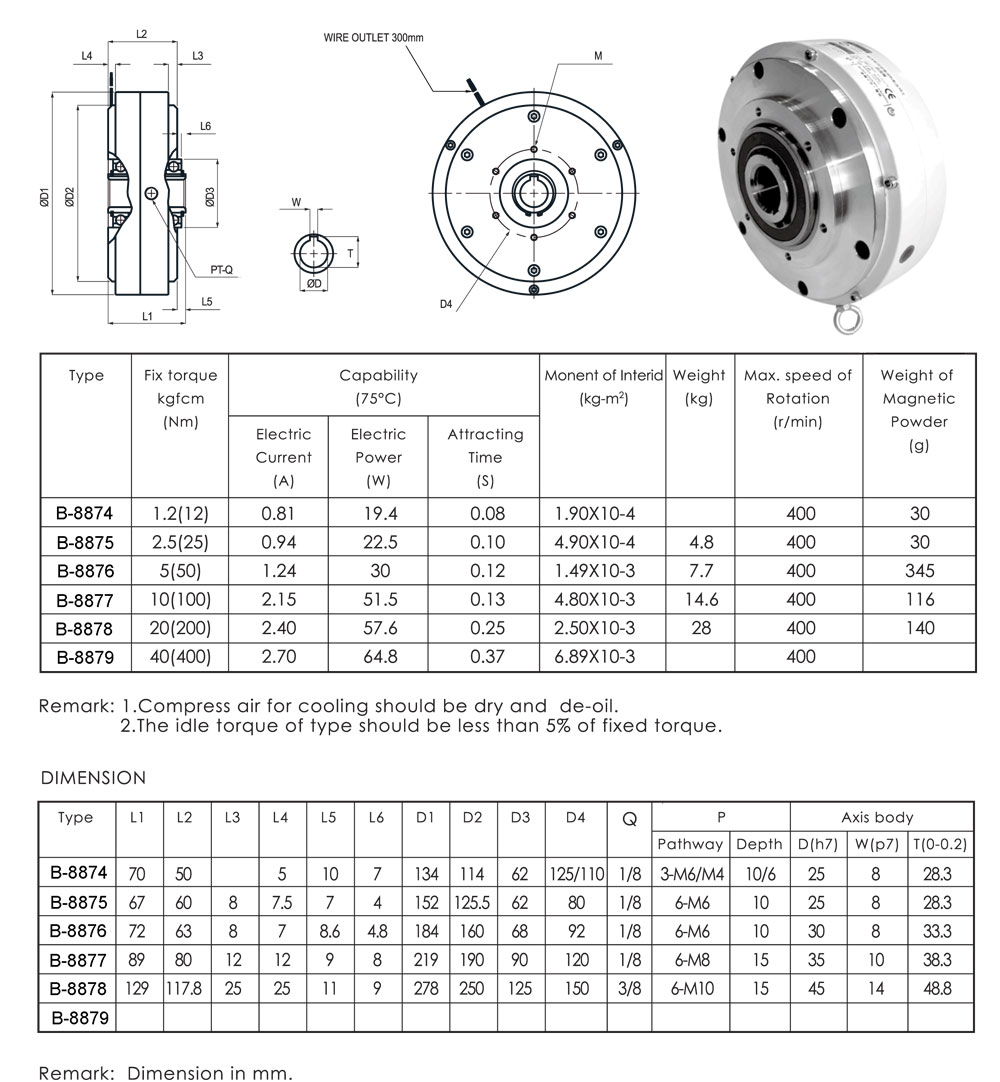

| Drawing | See description above |
| 3D Model | Contact us |
| Power | |
| Charging Current | 1.24 amps @ 167.0°F [75.0°C] |
| Features | |
| Cooling Port | 1/8PT - Compress air for cooling should be dry and oil free. |
| Installation | |
| Mounting | Shaft |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | Powder |
| Compare To | |
| JRC Web | B-8876 |
| Condition | |
| Product Condition | |
Powder Brake (B-8875) (PLB-025)
- Brand: JRC Web Accessories Categories: - Magnetic Particle Powder
- Part #: 503068
- Availability: Ships in 2 - 4 weeks from our factory in Fairfield, NJ USA
-
$636.90 Each
-
-
