Thru Bore Magnetic Particle Powder Brake, 295.0 ft·lbs (3,540.3 in·lbs) [40.8kg-m] [400N-m]), Ø1.969" (1-31/32") [50.00mm] Bore
Provides a smooth adjustable tension to your web while unwinding (paying off the roll). Torque can be varied using a controller. For contant torque without feedback use WT-PDC-05 controller. For constant tension with feedback use VA-816 and Load Cell. May also be controlled with a PLC (programmable logic controller) Voltage is constant at 24 volts DC. Vary the current to vary the torque. See table for maximum current. Port for air cooling.
| Capacities | |
| Maximum Torque | 295.0 ft·lbs (3,540.3 in·lbs) [40.8kg-m] [400N-m]) |
| Dimensions | |

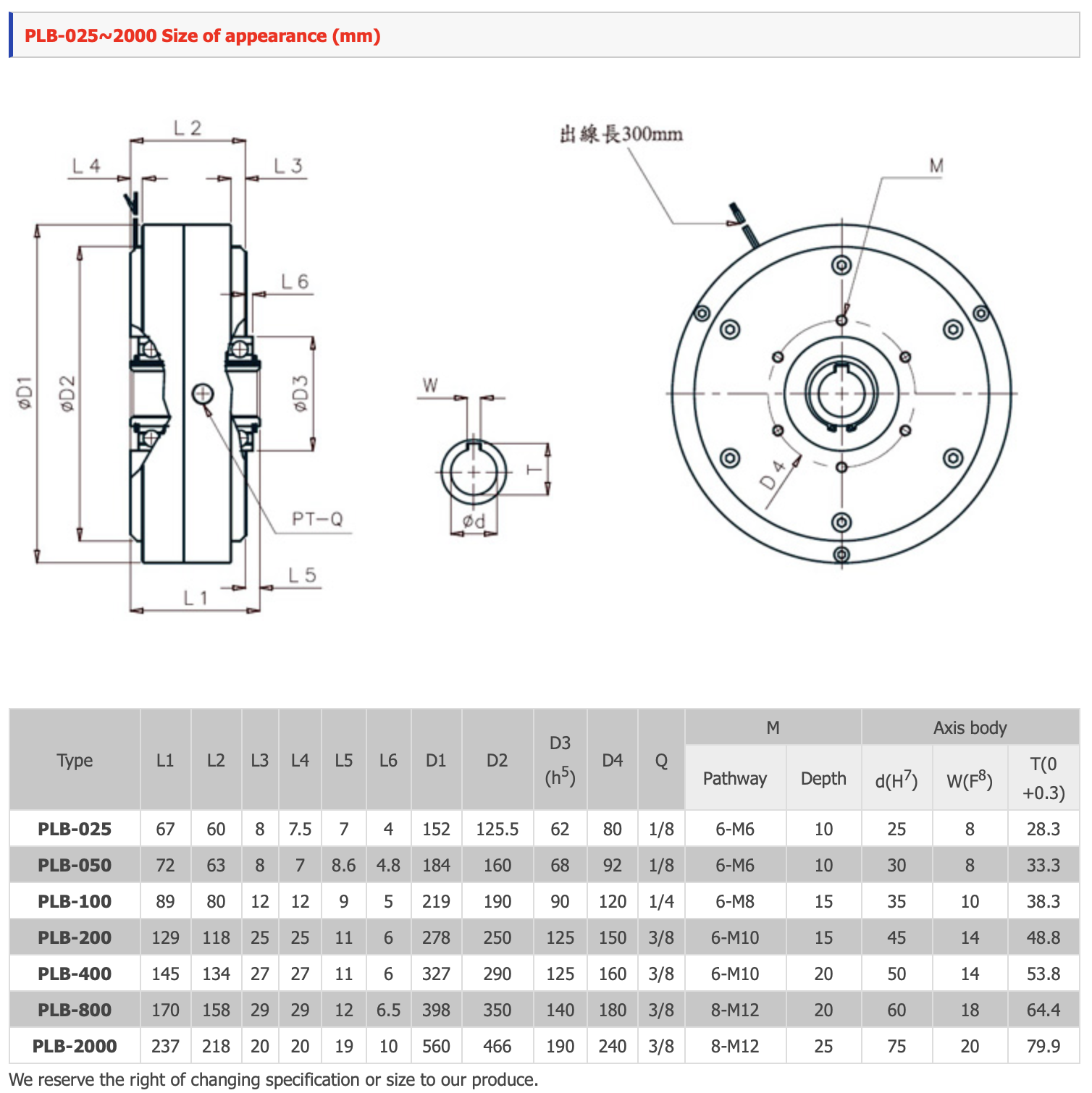

| Drawing | See description above |
| 3D Model | Contact us |
| Installation | |
| Mounting | Shaft |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | Powder |
| Condition | |
| Product Condition | |
Powder Brake (PLB-400)
- Brand: JRC Web Accessories Categories: - Magnetic Particle Powder
- Part #: 502898
- Availability: Ships in 6 - 8 weeks from our factory in Fairfield, NJ USA
-
$3,884.80 Each
-
-
Quantity Discount
1
2-41.5%
5-92.5%
10-147.5%
15-2410%
25-4915%
50+17.5%
