| Capacities | |
| Maximum Torque | 18.1 ft·lbs (217.0 in·lbs) [2.5kg-m] [25N-m] |
| Power | 26.4 Watts @ 167.0°F [75.0°C] |
| Magnetic Powder Weight | 1.38 oz [39.0g] |
| Maximum Speed | 1,500 rpm |
| Dimensions | |
| Moment of Inertia | Input 0.2848 #-ft2 [0.0120 kg-m2] Output 0.0546 #-ft2 [0.0023 kg-m2] |

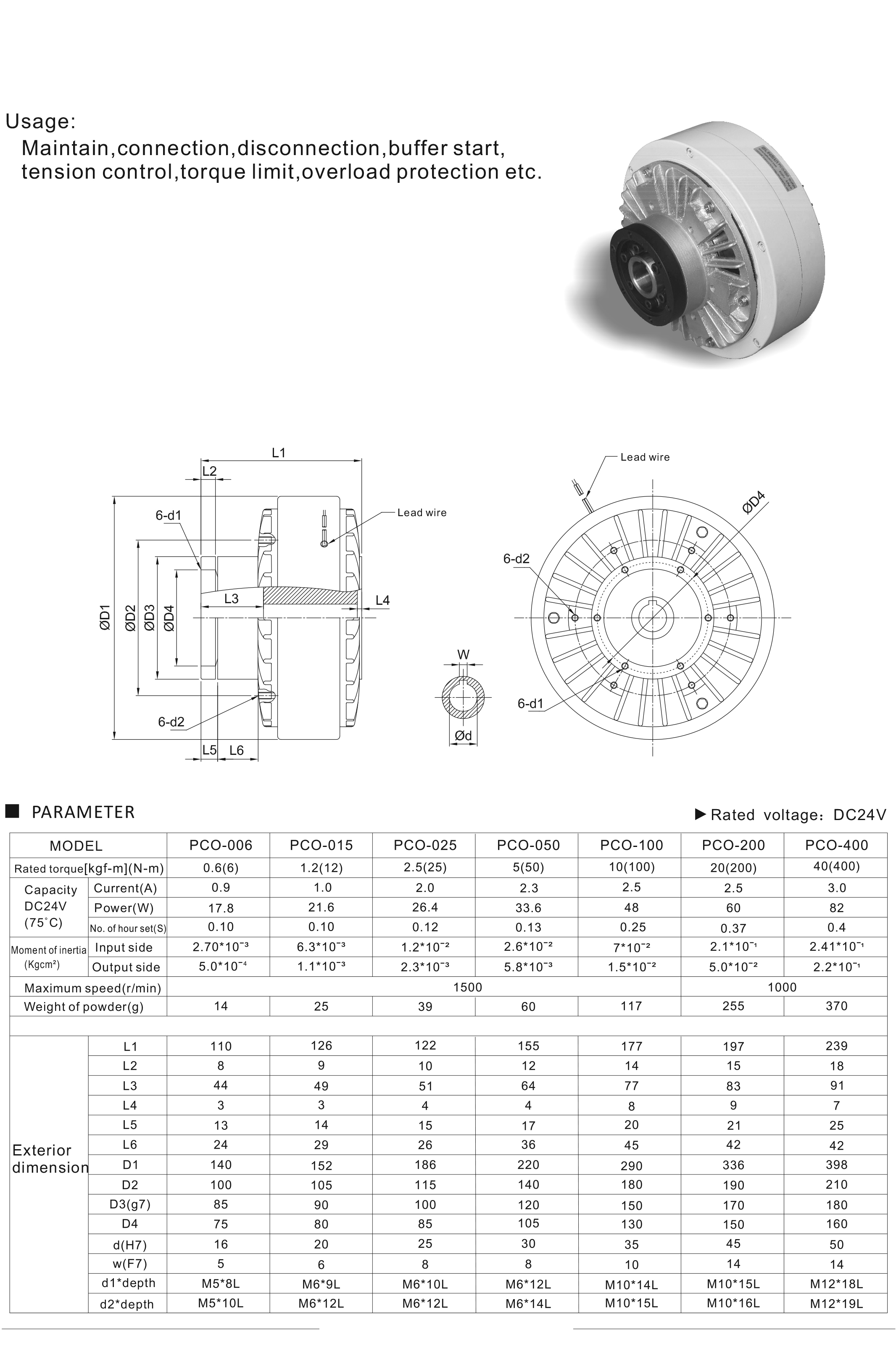

| Drawing | See description above |
| 3D Model | Contact us |
| Power | |
| Charging Current | 2.0 amps @ 167.0°F [75.0°C] DC24V |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | Powder |
| Condition | |
| Product Condition | |

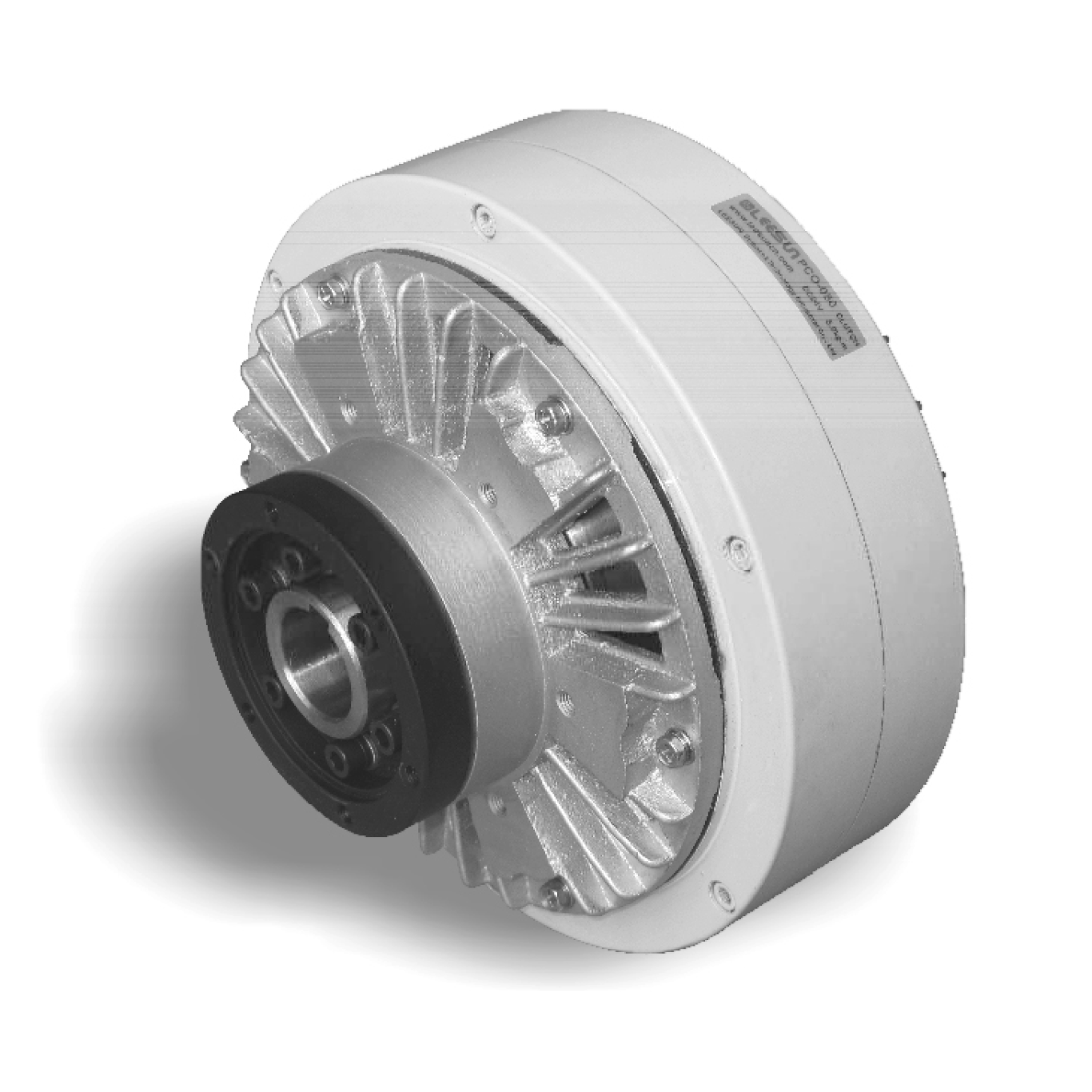

Thru Bore Powder Clutch (PCO-025)
- Brand: JRC Web Accessories Categories: - Magnetic Particle Powder
- Part #: 502445
- Availability: 3 IN STOCK in our factory in Fairfield, NJ USA that ships in 1 - 2 days. BALANCE ships in 2 - 4 weeks
-
$630.39 Each
-
-
Quantity Discount
1
2-41.5%
5-92.5%
10-147.5%
15-2410%
25-4915%
50+17.5%
