| File | Size | |
|---|---|---|

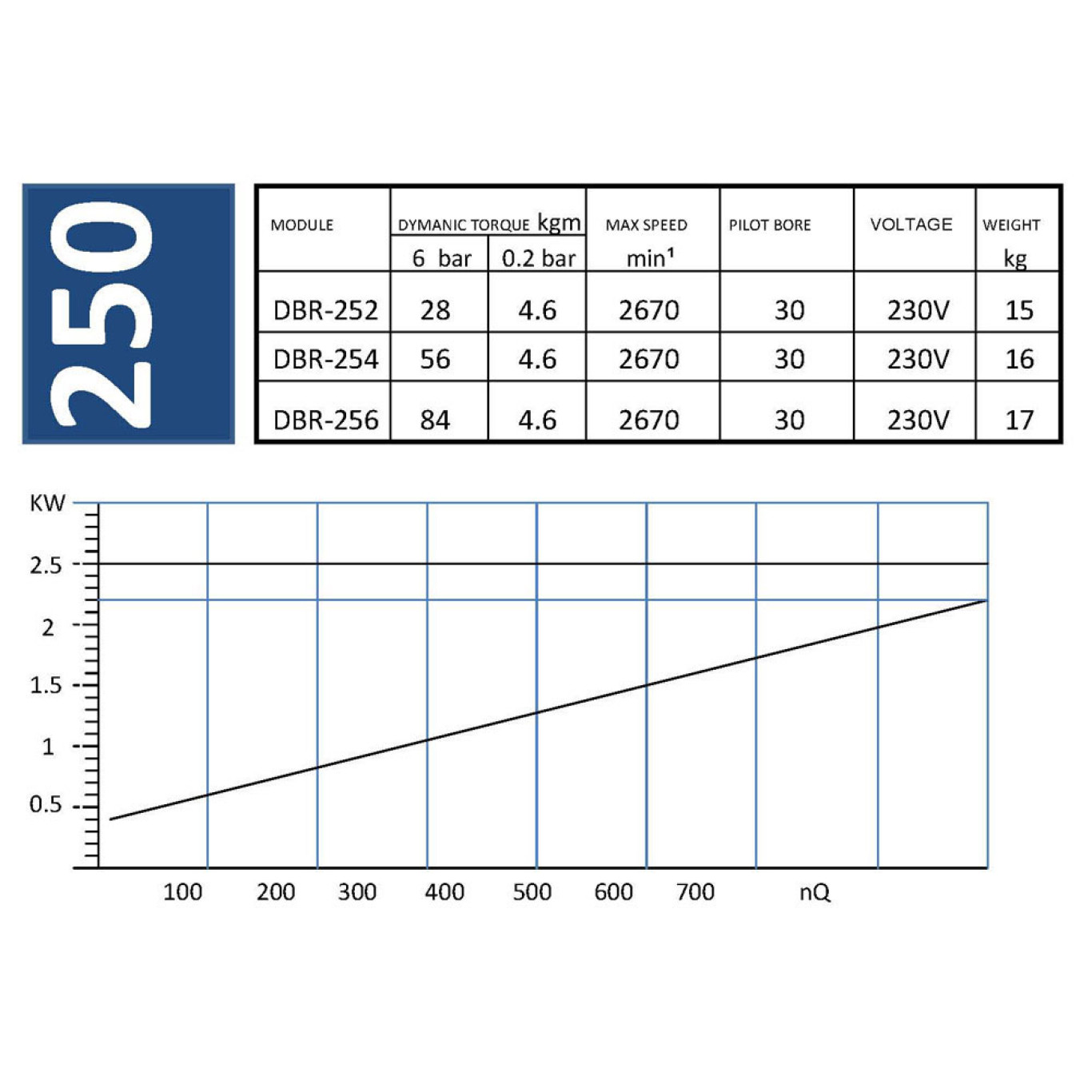

| dbr-chart.pdf | 102.14KB | Download |

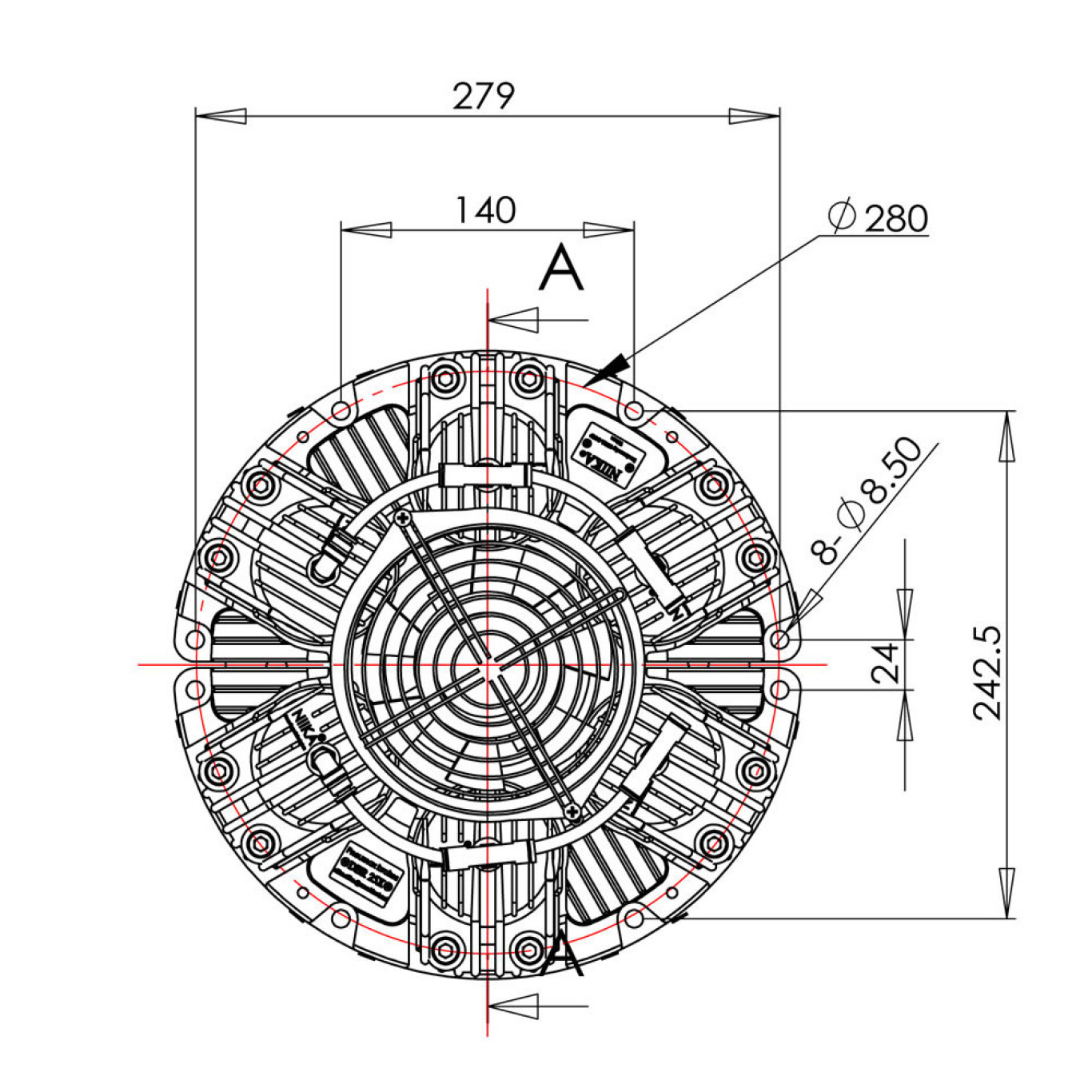

| dbr-dimensions-1.pdf | 199.67KB | Download |

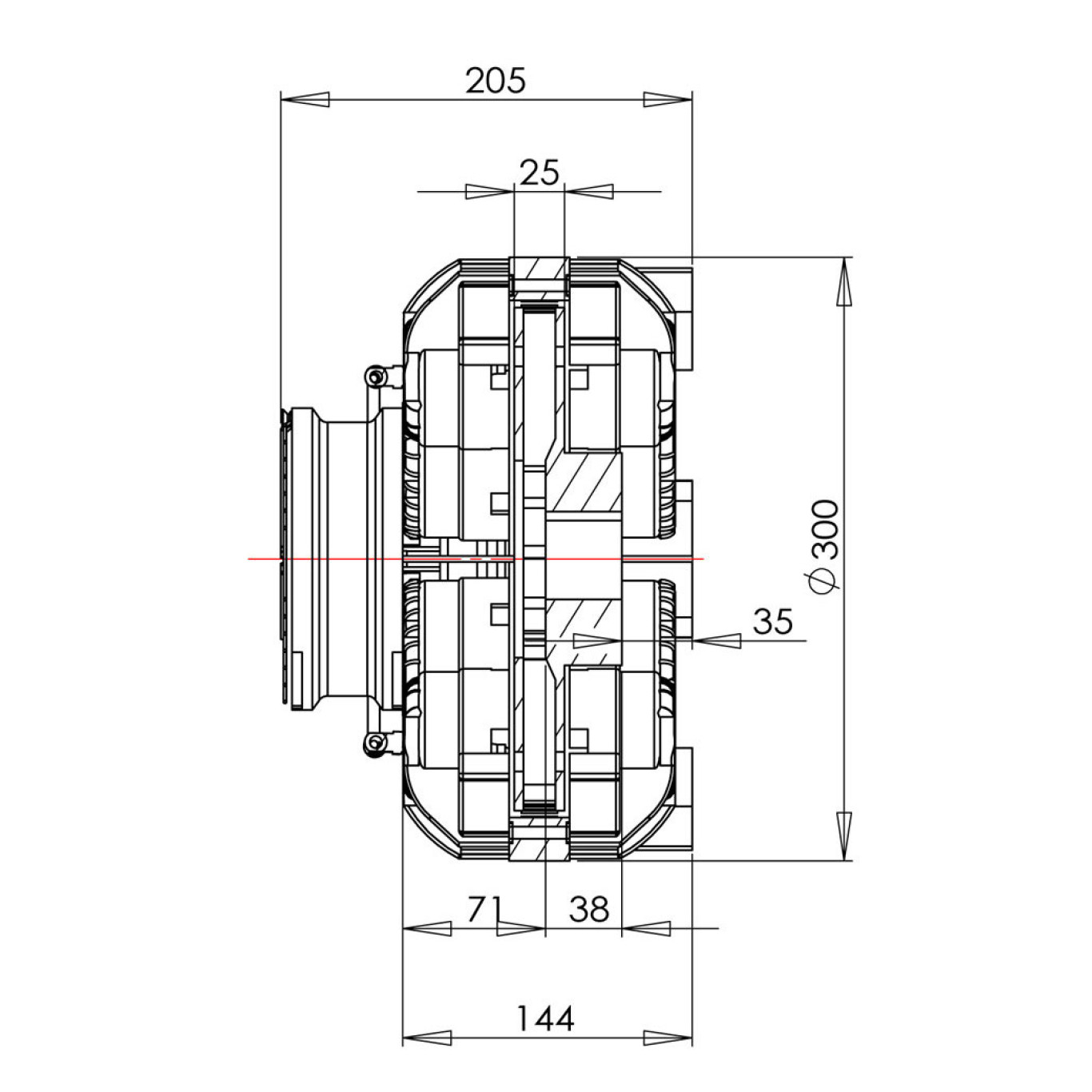

| dbr-dimensions-2.pdf | 100.01KB | Download |
The primary function of brakes is the conversion of mechanical energy into heat, which is then dissipated into the atmosphere. The amount of heat which can be dissipated by air cooled Disc Brakes is dependent on a high rotational speed, large disc diameter, and large radiant surface.
In continuous slipping applications Suitable for all types of applications
Suitable for high heat dissipation
Ideal for continuous slipping service
| Support | |
| Phone and email Support | |
| Warranty | |
| Condition | |
| Product Condition | |

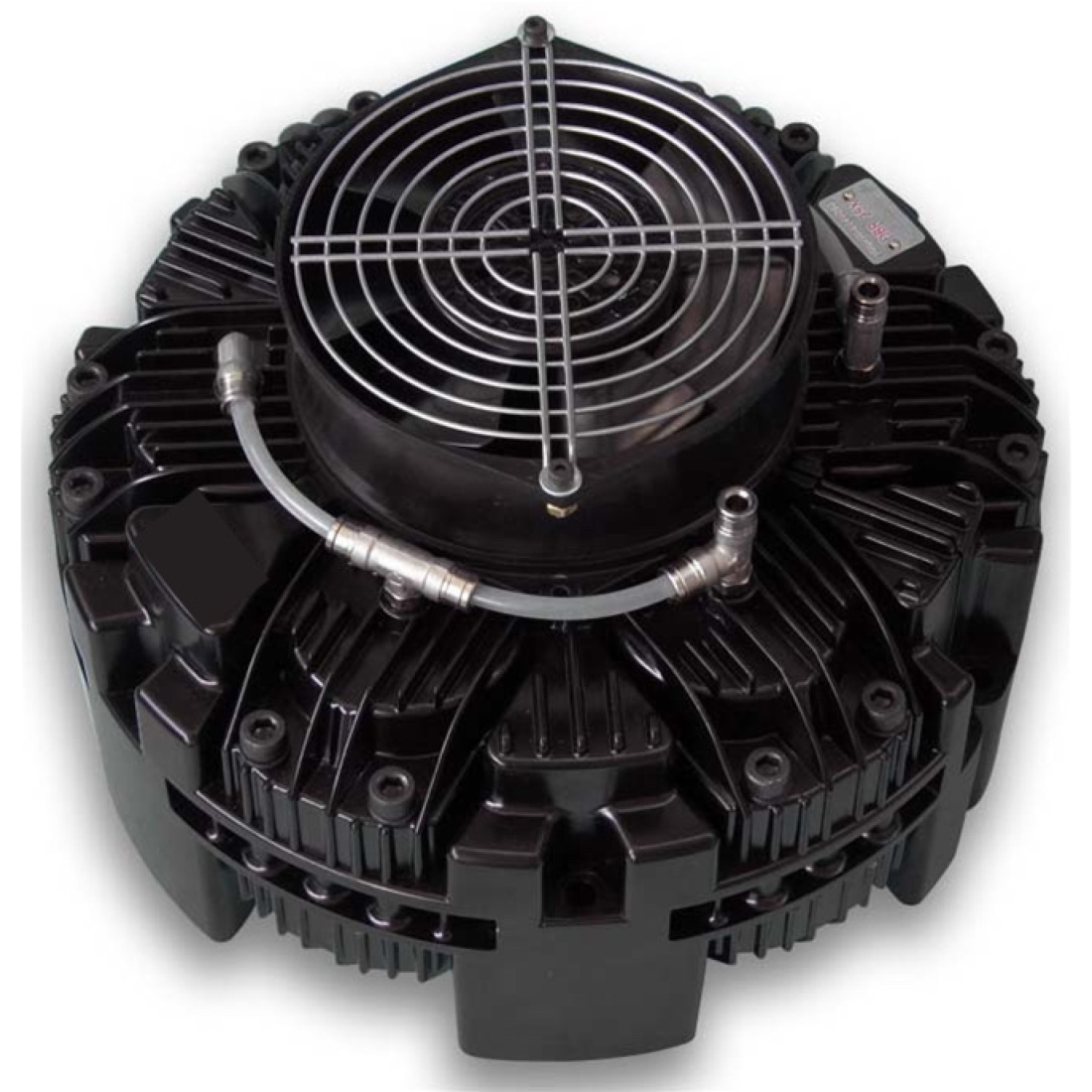

Fan Cooled Air Disc Brake, 607 ft-lbs (7,284 in-lbs), 11.81" OD, 1.875" Bore DBR-256
-
Categories:
- Fan Cooled Air Disc
- Part #: 502033
- Availability: Ships in 2 - 4 weeks from our factory in Fairfield, NJ USA
-
$1,238.90 Each
