The DBH is an economic caliper brake, which offers a wide variety of thrusters and features.
Easy Pad Change: The pads can be changed in a couple of minutes
Asbestos Free Pads : The standard pads fitted are asbestos free.
Brake Discs: The DBH104,105 designed for disc thickness 10MM and OD over 200mm

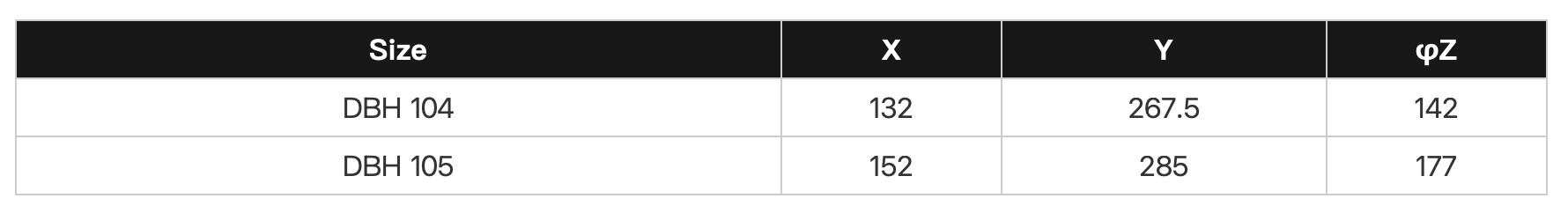

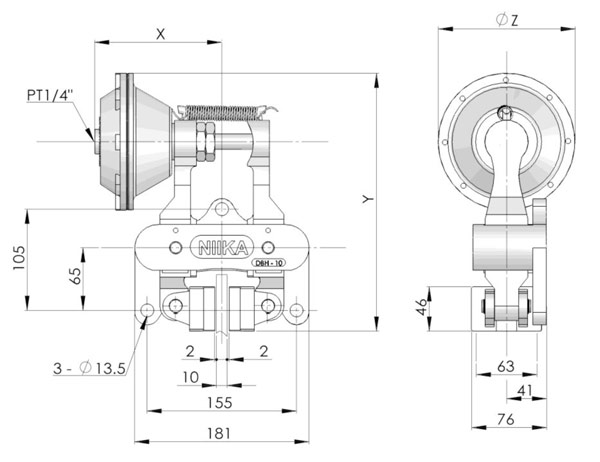

DBH-10X series

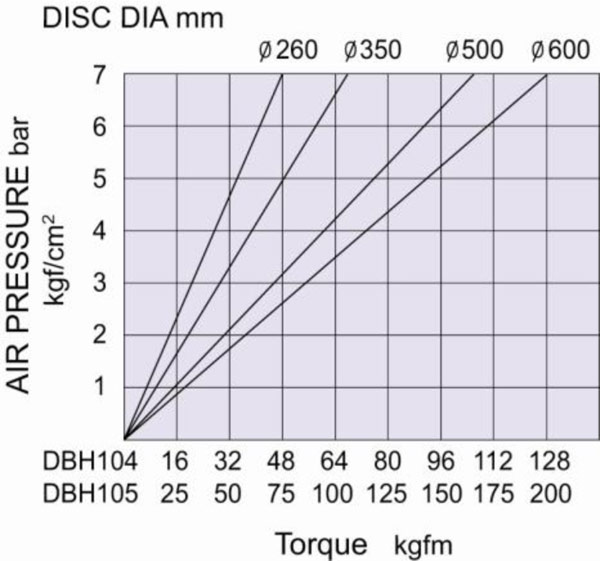

Torque Formula :

Braking Torque (kgm) =Braking Force (kg) x Effective Disc Radius (Actual)(mm)
